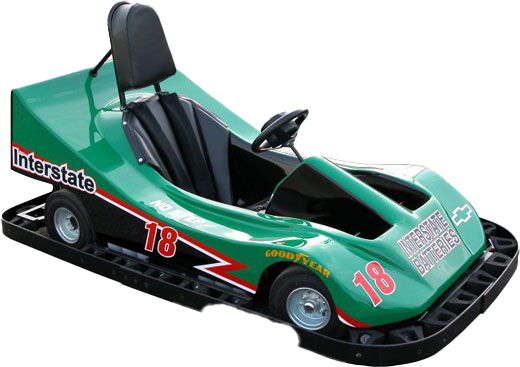

This superb handling and easily maintained kart has the same dimensions as our F-3002 two-seater, eliminating the need for two separate pit lanes. Now, when utilizing our floor charging system, single and two-seat karts can be intermixed in the same pit lane.



Specifications

  • Length: 88 in.
  • Width: 45 in.
  • Height: 40 in.
  • Weight: 475 lbs.
  • Front Tires: 12 x 4.00 x 5
  • Rear Tires: 12 x 4.00 x 5
  • Wheels: Heavy duty 9 gauge stamped steel
  • Passenger: 1 Driver minimum 54″ height recommended
  • Frame: 1″ x 2″ 11 gauge square tube construction
  • Motor: 5.5 hp Honda with 2:1 Gear Reduction Clutch
  • Rail System: Wraparound Spring Steel Bumper Band System

Optional Equipment

  • Custom Sticker Package
  • 48V Electric Motor
  • GX 200 6.5 hp motor
  • Self adjusting hydraulic disc brakes
  • Polychain cog belt drive system
  • 2.5 gallon long range fuel tank
  • Front hoop
  • 2” back cushion for smaller drivers
